This product is in the digestion and absorption of the introduction of products, based on the introduction of products in China, according to the use of the design improvement.
This product is in the digestion and absorption of the introduction of products, based on the introduction of products in China, according to the use of the design improvement. To resolve some foreign product line change inconvenience and article spiral axial position can not be adjusted defects.
BWGC series sand by without shaft screw water separator, lining, u-shaped slot article, water tank, guide plate, water dam and drive equipment etc.

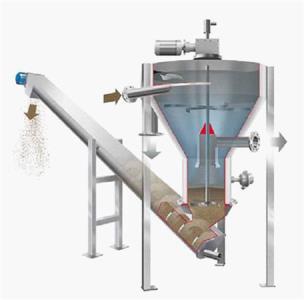

Sand mixture water from the top end input water tank, separator mixture of moderate to larger such as sand will be deposited on the bottom, in the spiral groove type, driven by the sand buy U the groove bottom ascension, leave after liquid surface goes on from a distance, to continue in full by the row after dehydration sand discharge to mouth filled with sand barrels, and after the separation from water is being exhausted from port and sent to overflow into the water tank in factory.
It is used to separate sand-water from sediment tank in municipal wastewater treatment or industrial wastewater treatment.
Model | Capacity (m3/hr) | Mixer | Tank diameter (mm) | Sand lifting (L/s) | Blower | ||
Rotating speed(rpm) | Power(kW) | Capacity (m3/min) | Power (kW) | ||||
BWGC-180 | 180 | 12 | 1.1 | 1830 | 1-1.2 | 1.43 | 1.5 |
BWGC-360 | 360 | 2130 | 1.2-1.8 | 1.79 | 2.2 | ||
BWGC-720 | 720 | 2430 | 1.8-3 | 1.75 | |||
BWGC-1080 | 1080 | 3050 | 3-5 | ||||
BWGC-1980 | 1980 | 1.5 | 3650 | 5-9.8 | 2.03 | 3 | |
BWGC-3170 | 3170 | 4870 | 9.8-15 | 1.98 | 4 | ||
BWGC-4750 | 4750 | 5480 | 15-22 | ||||
BWGC-6300 | 6300 | 5800 | 22-28 | 2.01 | |||
BWGC-7200 | 7200 | 6100 | 28-30 |
1.Frame 2.Main body 3. separating groove 4. sand discharging pipe 5. inlet pipe 6. Impeller 7.sand cover 8. shifting rod 9. Cone 10.branch pipe 11.air flushing pipe 12.gearbox 13.outlet pipe
· separation efficiency of 96% ~ 98%, can separate particles diameter≥0.2 mm particles
· no water bearing, line for fast loading type, easy maintenance.
· spiral axial position can be adjusted, easy to adjust its tail and the security clearance.
