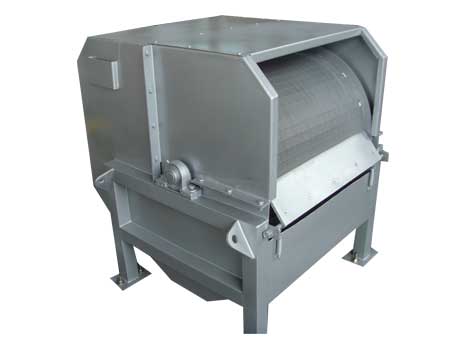

Rotary drum screen(External feed, on ground)
Introduction
The External Feed Rotary Drum Screen is a machine for the fine screening of sewage coming from industrial or civil purification plants, or for the screening of process waters coming from industrial transformation plants.
Specifications:
Capacity: 0-560m3/h
Dimension: Customized
Material: SS304, SS316 or Customized
Opening type: wedge wire or perforated
Opening size:0.15-5mm
Motor brand: First-class motor, Nord or SEW is optional
-
Description
The External Feed Rotary Drum Screen is a machine for the fine screening of sewage coming from industrial or civil purification plants, or for the screening of process waters coming from industrial transformation plants.
The External Feed Rotary Drum Screen is used in purification plants or process water treatment plants, where it is necessary to screen a large amount of fluid, i.e. fluids coming from steam raised pipelines. It is possible to install such a machine in aerial channels or in narrow spaces thanks to its limited dimensions in relation to the obtainable capacities.
-
Applications
· Civil purification plants
· Paper Mills
· Food Industry
· Chemical Industry
-
Technical parameters
Model
Screen size
(mm)
Mesh size
(mm)
Max capacity
(m3/h)
Dimension
(mm)
Power
(kW)
Material
BWSEF-300
Φ300*500
0.15-5
5-50
760*700*1200
0.55
SS304,SS316
BWSEF-400
Φ400*600
0.15-5
8-90
860*800*1300
0.55
SS304,SS316
BWSEF-500
Φ500*750
0.15-5
12-140
1050*900*1500
0.75
SS304,SS316
BWSEF-600
Φ600*900
0.15-5
17-200
1160*1000*1500
0.75
SS304,SS316
BWSEF-700
Φ700*1000
0.15-5
23-280
1260*1100*1600
0.75
SS304,SS316
BWSEF-800
Φ800*1200
0.15-5
30-360
1460*1200*1700
1.1
SS304,SS316
BWSEF-900
Φ900*1350
0.15-5
40-450
1600*1300*1800
1.5
SS304,SS316
BWSEF-1000
Φ1000*1500
0.15-5
50-560
1600*1300*1800
1.5
SS304,SS316
-
Advantages
1. The material is high-strength and corrosion-resistant stainless steel; Less used field area; Convenient construction; It can be directly fixed with expansion bolts without channel construction; Inlet and outlet water can be connected with pipes.
2. The screen will not be blocked by waste solid because the machine is inverted trapezoid cross section
3. The machine is controlled by adjustable-speed motor, which can maintain optimum working condition according to water flow.
4. Special washing device can brush away the impurities on the surface of screen, after twice internal brush, it will achieve the best cleaning effect.
-
